The bias-variance tradeoff: an illustrated guide

This article clarifies the idea behind the very well-known bias-variance tradeoff. Even though you have probably heard it many times and in different contexts, it may cause still some confusion.

This fundamental tradeoff helps you understand the balance between simplicity and complexity in your models and as a consequence, it guides you toward building better, more accurate models.

Finally, to help you better understand and remember this topic, this article will also include graphical illustrations!

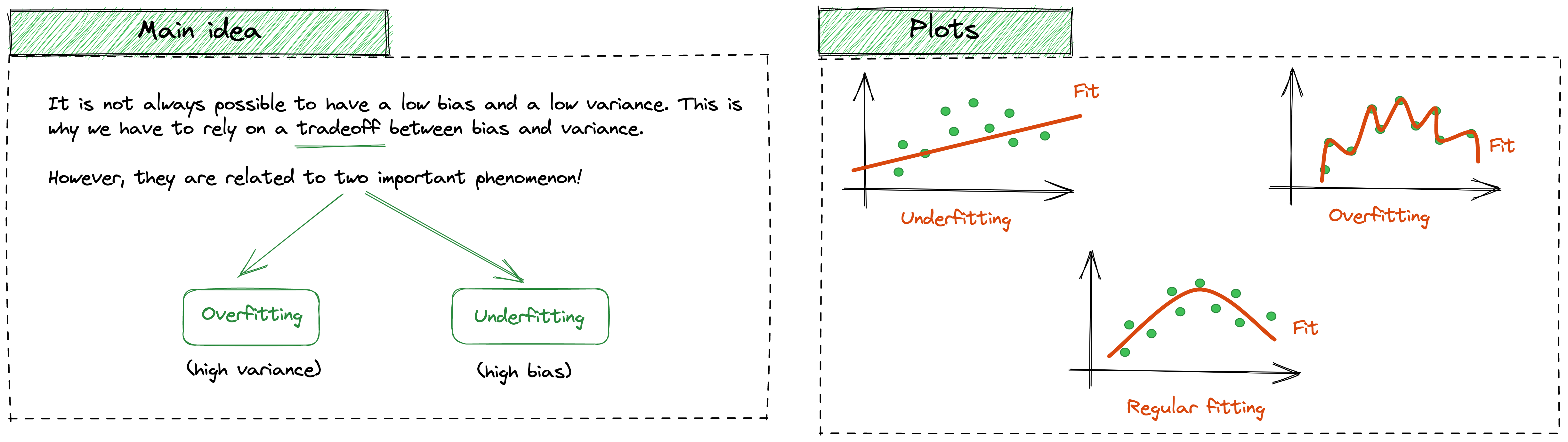

Main idea

The variance reflects the variability of the predictions whereas the bias is the difference between the forecast and the true values (error). Ideally, while building a good Machine Learning model, we hope to reach a low bias (error) and a low variance, in order to well generalize.

However, this rarely happens, and this is why we need to rely on this “trade-off”. What makes this topic so hot, is its strong relationship with two famous phenomena in the literature: overfitting and underfitting.

It’s important to find a balance between these two types of error in order to build a good model.


Image Credits: illustrated-machine-learning.github.io

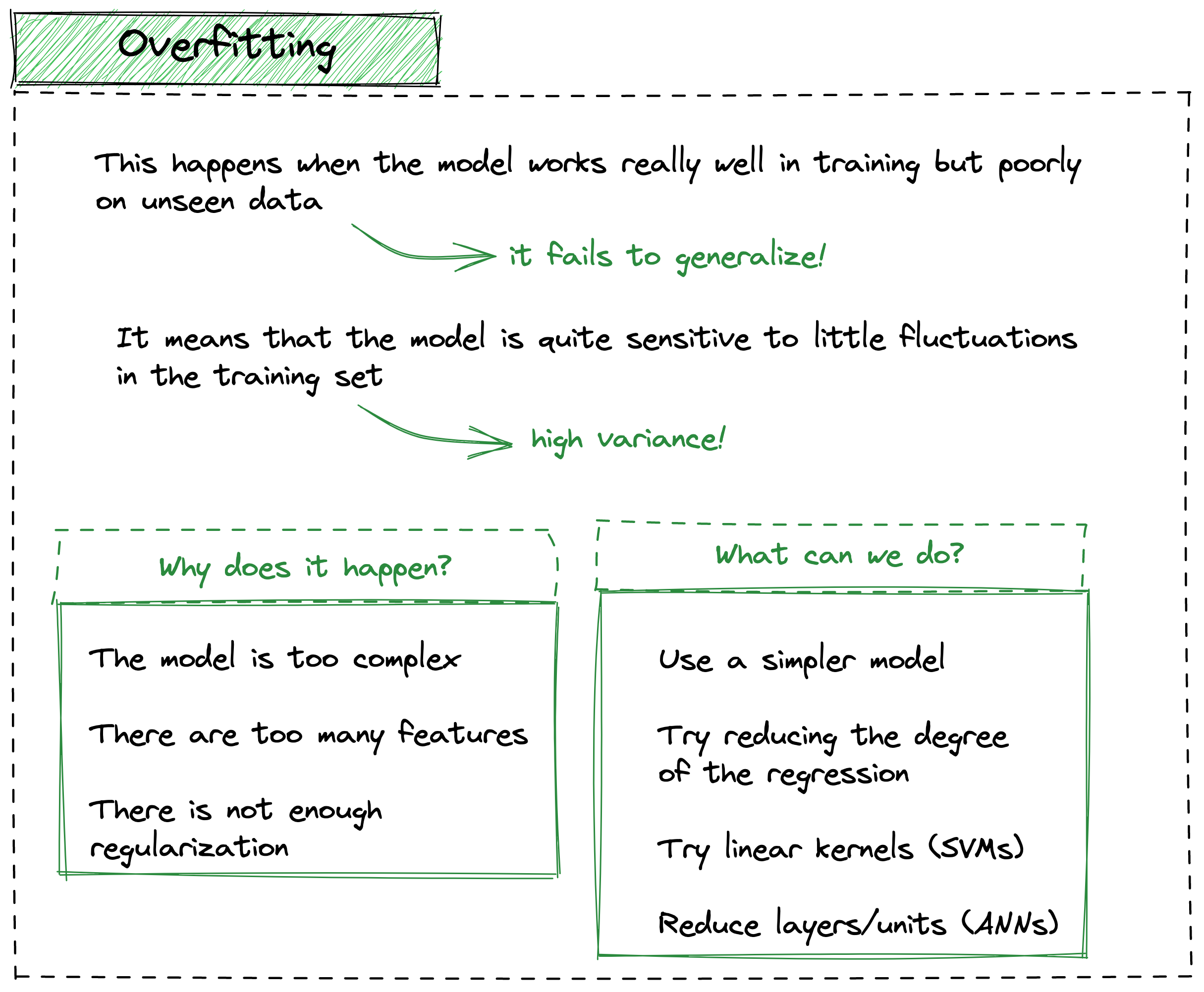

Overfitting

In simple terms, overfitting happens when the model works really well in training but poorly on unseen data, therefore, it fails to generalize.

Based on what we observed above, this means that the model is highly sensitive to little fluctuations in the training set. Hence, the model suffers from high variance.

Some of the most common causes are:

the model is too complex and it is not able to generalize enough on unseen data
there are too many features
there is not enough regularization (which may help to reduce the model complexity

Obviously, there is no absolute solution to solve overfitting, but based on the problem and the model, we can:

try simpler models
try to reduce the degree of the regression (if applicable)
try linear kernels (if applicable)
try reducing layers/units (if applicable)


Image Credits: illustrated-machine-learning.github.io

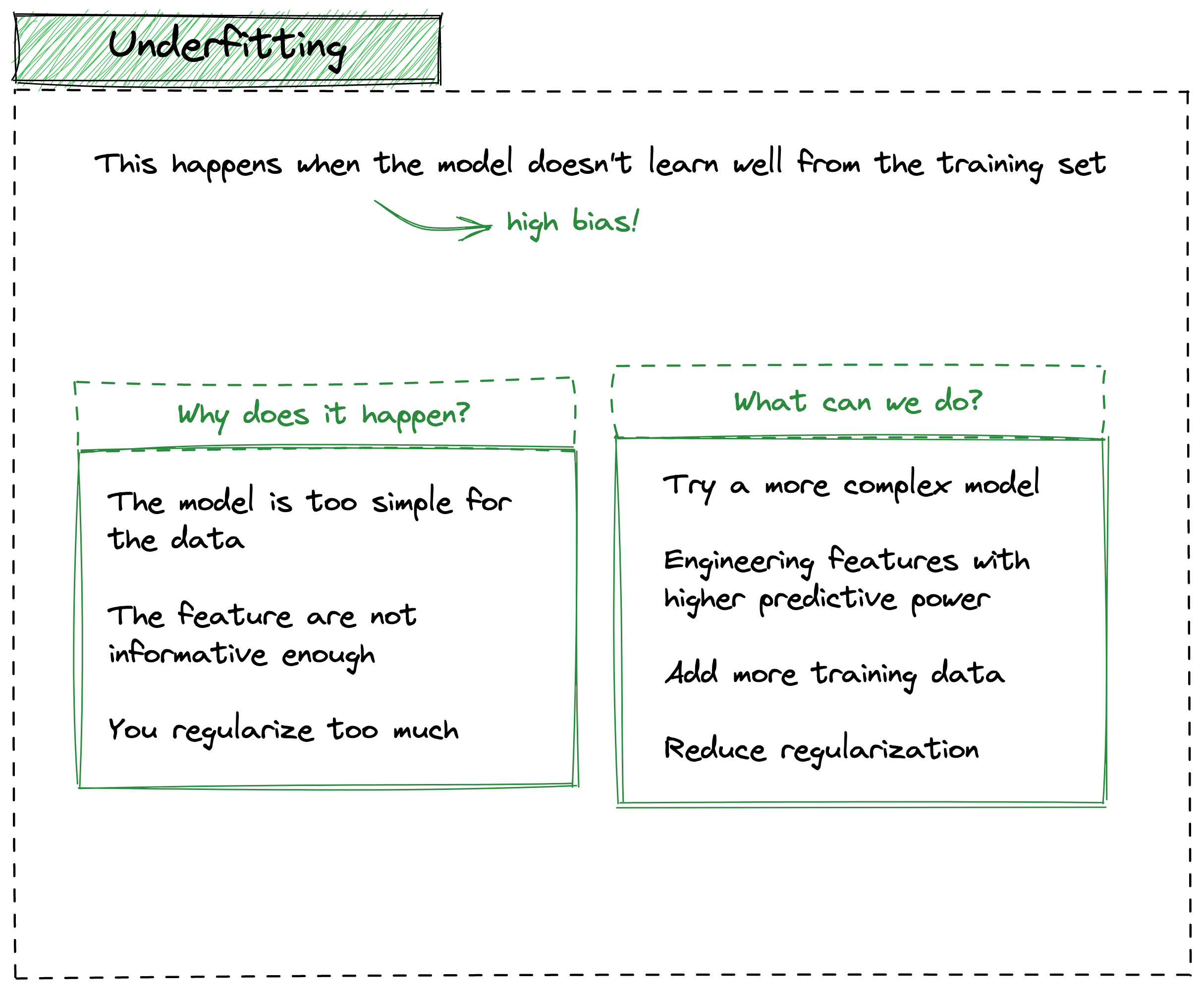

Underfitting

Underfitting, on the other hand, happens when the model doesn’t learn well from the training set, hence, there is a high bias.

The most common causes are:

the model is too simple for the data
the features are not informative enough
you regularize too much (hence, the model becomes too simple)

A few solutions are:

try more complex models
select those features with a higher predictive power
add more training data (if possible..)
reduce regularization


Image Credits: illustrated-machine-learning.github.io

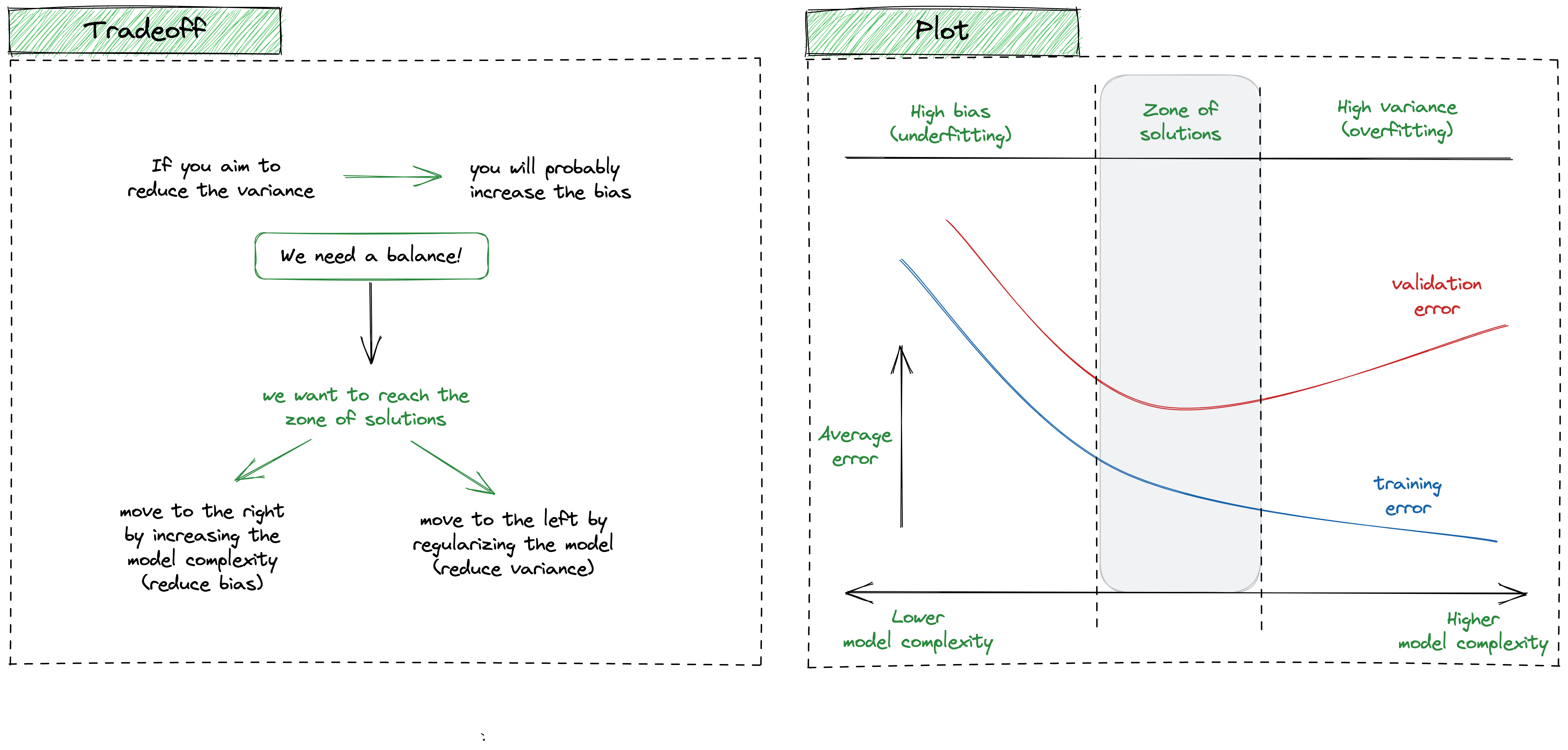

Tradeoff

As we already mentioned, it is not always possible to have a very low bias and a very low variance, therefore, we need to find a good compromise between the two.

The overall goal is to reach the so-called zone of solution, an optimal zone that balances these two holy metrics.

Having the picture below as a reference, if we are on the left side, we should carefully move to the right by increasing the model complexity (reduce bias). On the other hand, if we seek to move leftwards, we have to simplify the model and reduce the variance.


Image Credits: illustrated-machine-learning.github.io

Conclusion

In this article, we went through the bias-variance tradeoff, which is crucial for building effective models. I hope the article was clear enough and I hope the illustration may help you remember later on!
